Door Closers & Emergency Panic Push Bars: Essential Components for Safety and Convenience
Door Closers: Precision for Secure Closure
A door closer is a spring-loaded hydraulic device that ensures doors close automatically. The most common type is the surface-mounted door closer, which is installed on the surface of the door or header.
To adjust the door closer effectively:
-
Start small: Begin by turning the adjustment screw no more than 1/8 of a turn.
-
Clockwise turns slow the door closer down.
-
Counterclockwise turns speed it up.
After each adjustment, step back and observe the door as it opens and closes. This ensures the door is functioning as intended, without being too fast or too slow.
The primary purpose of the door closer is to ensure that the door closes securely, especially in fire-rated situations or to keep unwanted entry at bay. If the door fails to close properly, or if it slams shut, it may be time for a replacement.
Types of Overhead Door Closers:
-
Regular Arm Closers: The regular arm or standard arm closer is commonly used for pull-side applications, where the door opens outward.
Crash Bars: Efficient Emergency Exit Systems
A crash bar, also known as a panic exit device, panic bar, or push bar, is a safety mechanism designed to allow users to exit quickly and without obstruction.
By simply pushing a bar, the latch mechanism is retracted, enabling the door to be opened easily. This type of door hardware is essential in emergency exits, ensuring that individuals can exit a building quickly and safely in the event of an emergency.
Panic hardware is often used in high-traffic areas or public buildings, where fast and unimpeded access is crucial for safety.
These two components—door closers and Emergency Panic Push bars—play vital roles in both security and safety, ensuring that doors function correctly and that individuals can exit safely during emergencies.

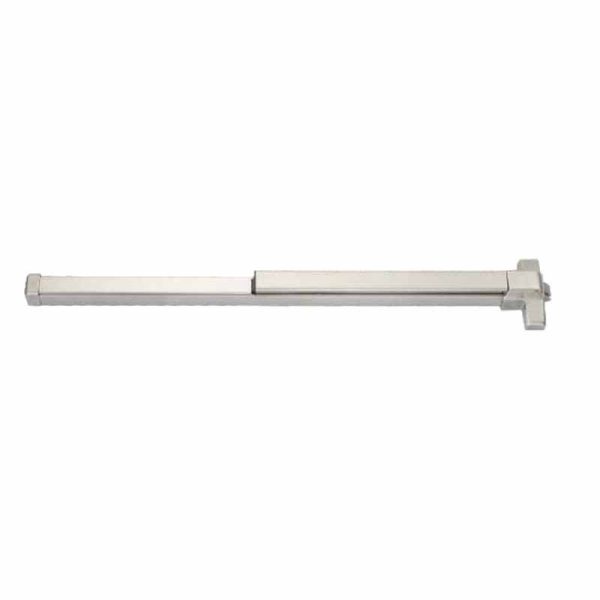

M-P401S
Material: Stainless steel 304 with stain finish
Door type: Timber and Metal door
Max Door Weight: 200kgs

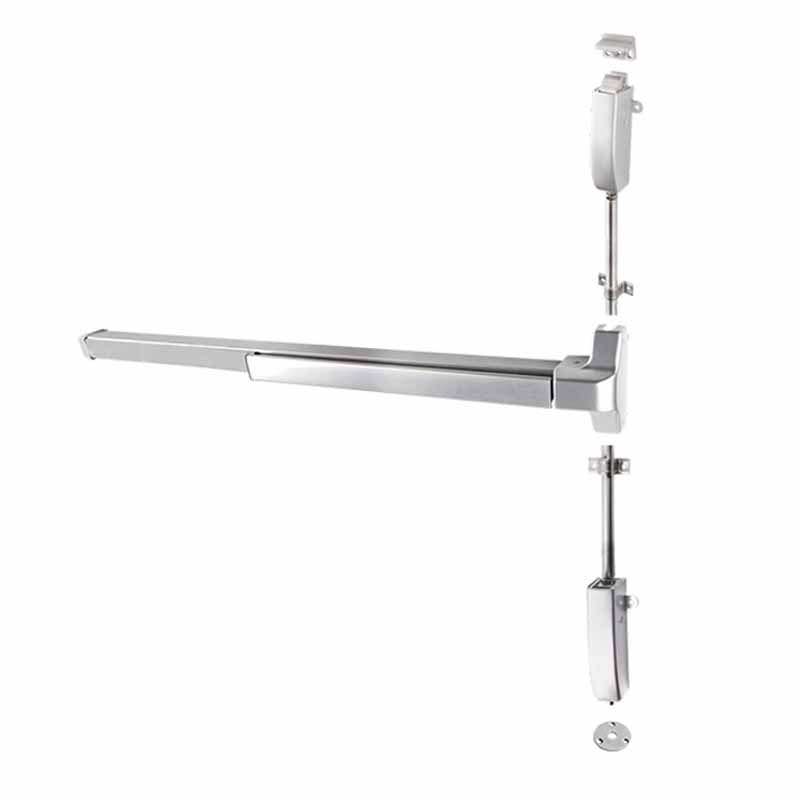

M-P406S
Material: Stainless steel 304 with stain finish
Door type: Timber and Metal door
Max Door Weight: 200kgs

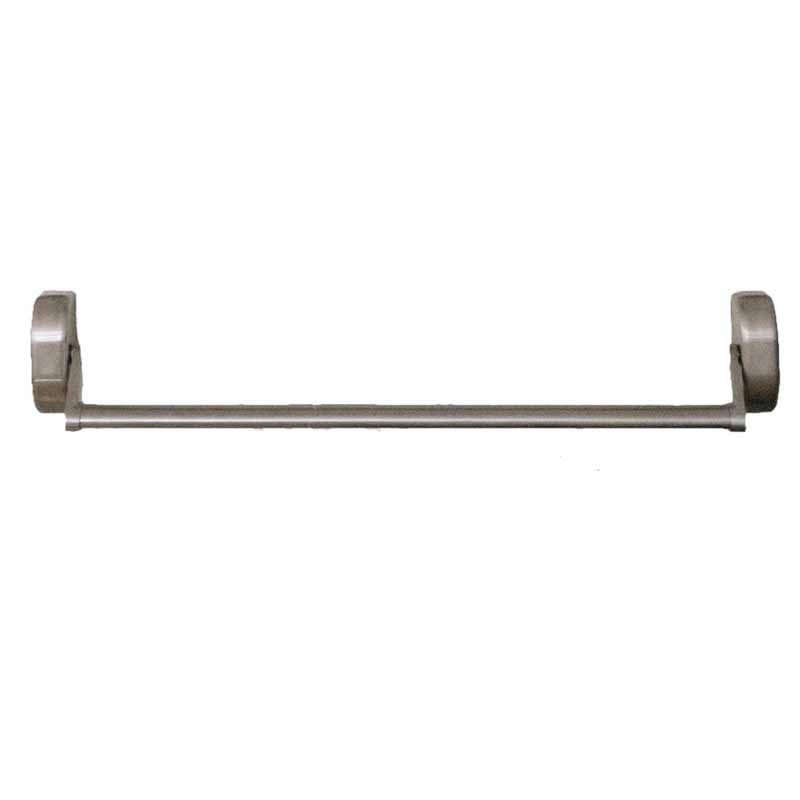

M-P501S
Material: Stainless steel 304 with stain finish
Door type: Timber and Metal door
Max Door Weight: 200kgs
M-P506S
Material: Stainless steel 304 with stain finish
Door type: Timber and Metal door
Max Door Weight: 200kgs

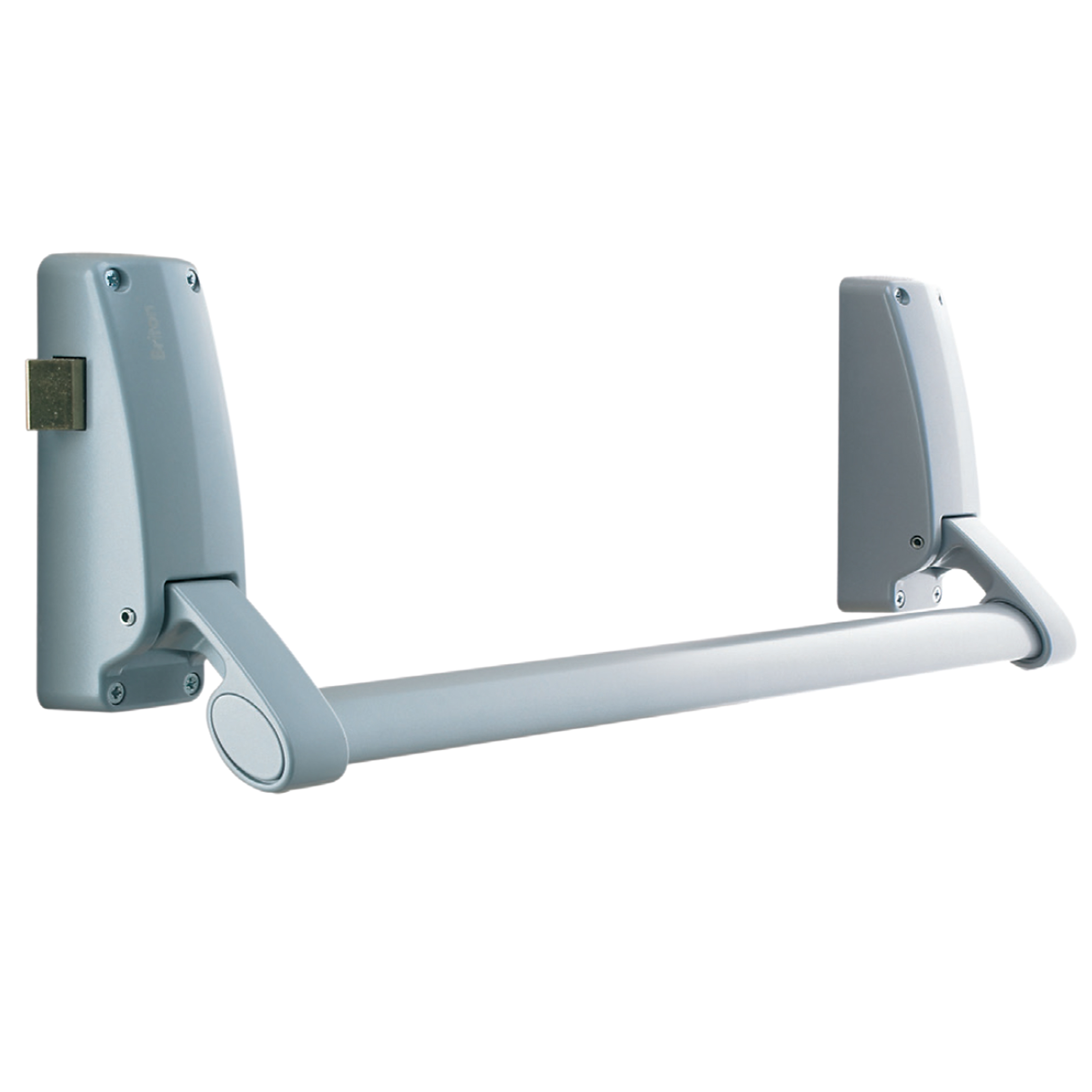

Allegion - Briton 378
Material: Stainless steel 304 and Certifire Approved (CF5506)
Door type: Timber and Metal door
Fire tested to EN 1634-1 to achieve a 2 hour fire rating on timber doors (1 hour when used with Outside Access Devices) and 2 hours on metal doors

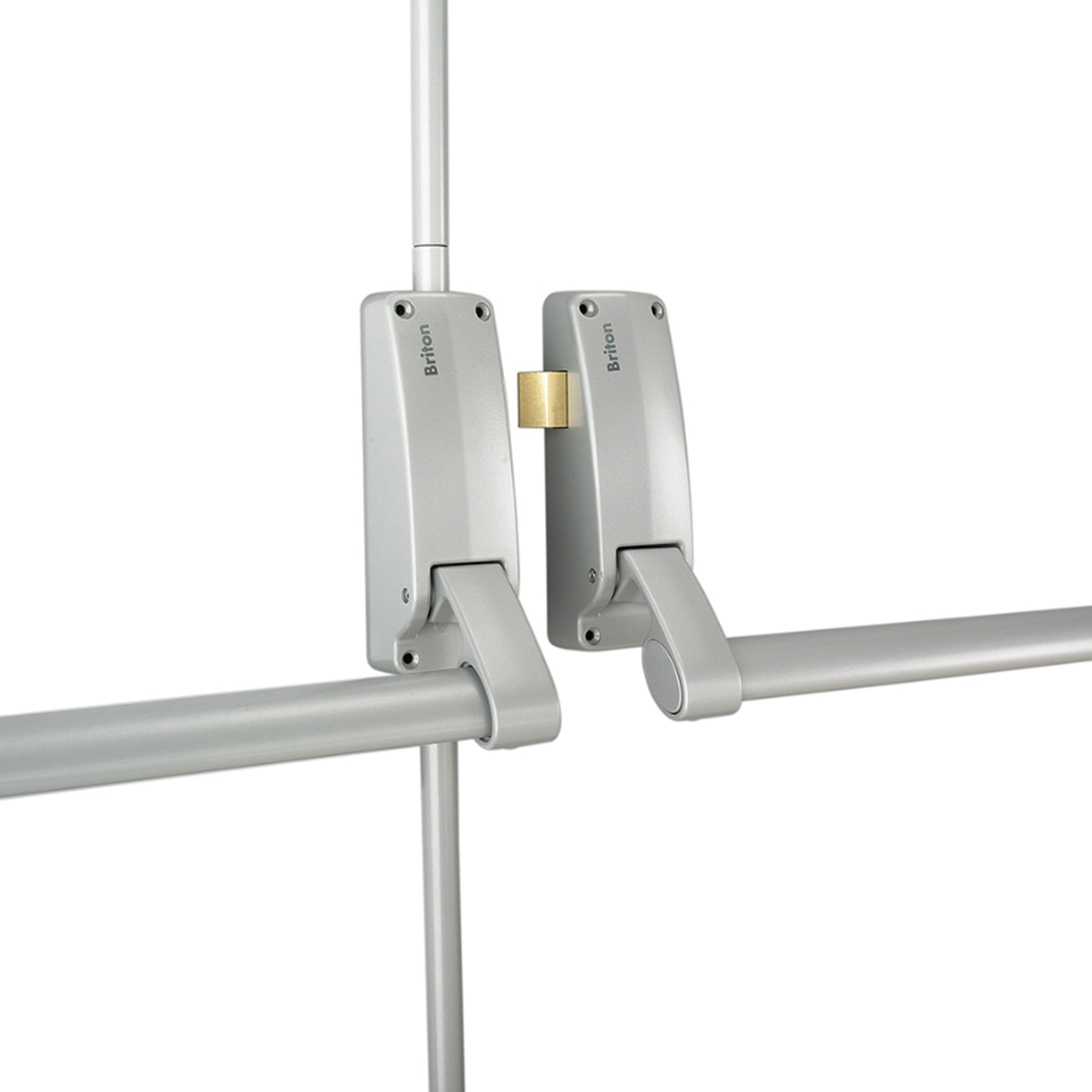

Allegion - Briton 377
Material: Stainless steel 304 and Certifire Approved (CF5506)
Door type: Timber and Metal door
Fire tested to EN 1634-1 to achieve a 2 hour fire rating on timber doors (1 hour when used with Outside Access Devices) and 2 hours on metal doors

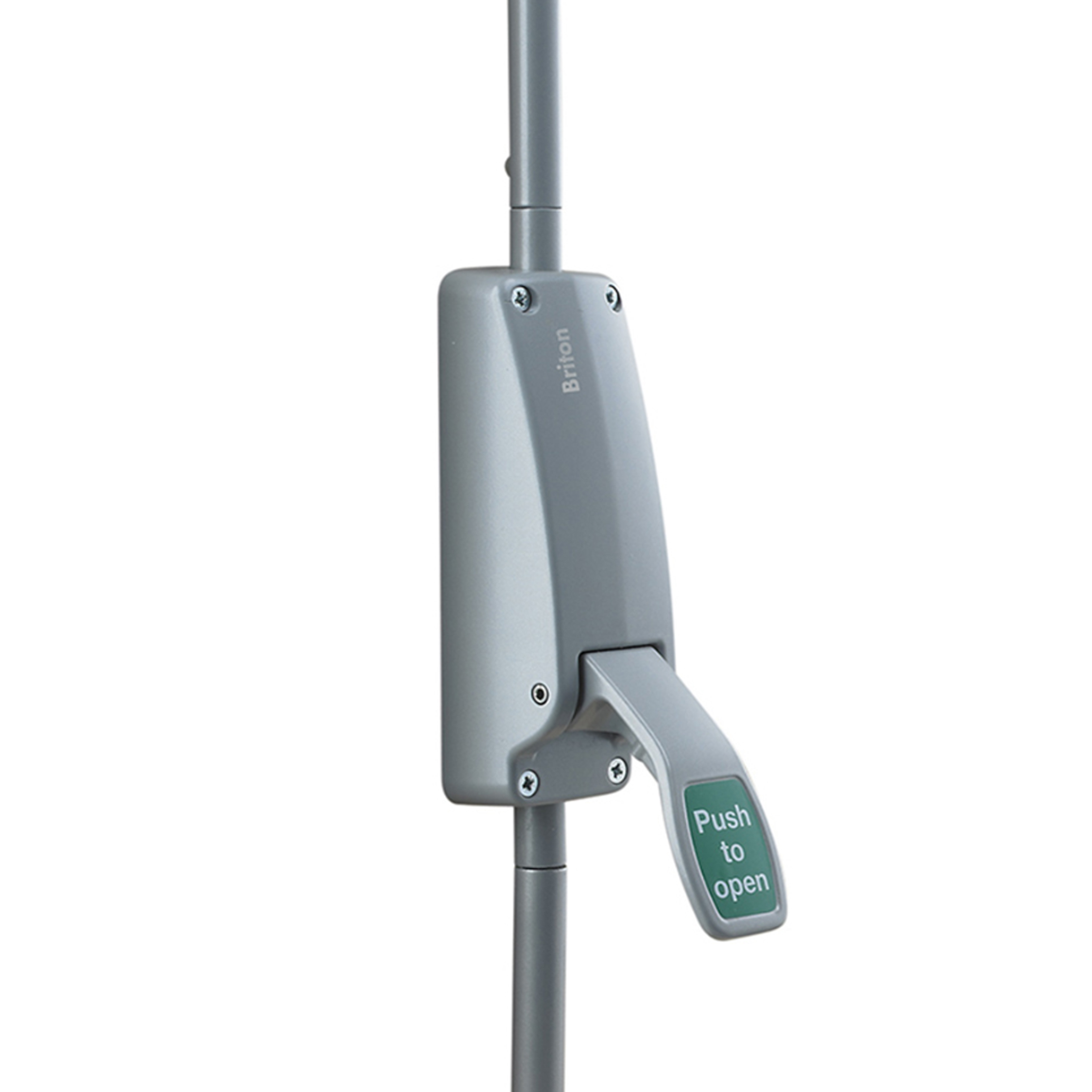

Allegion - Briton 372
Material: Stainless steel 304 and Certifire Approved (CF5506)
Door type: Timber and Metal door
Fire tested to EN 1634-1 to achieve a 2-hour fire rating on timber doors (1 hour when used with Outside Access Devices) and 2 hours on metal doors

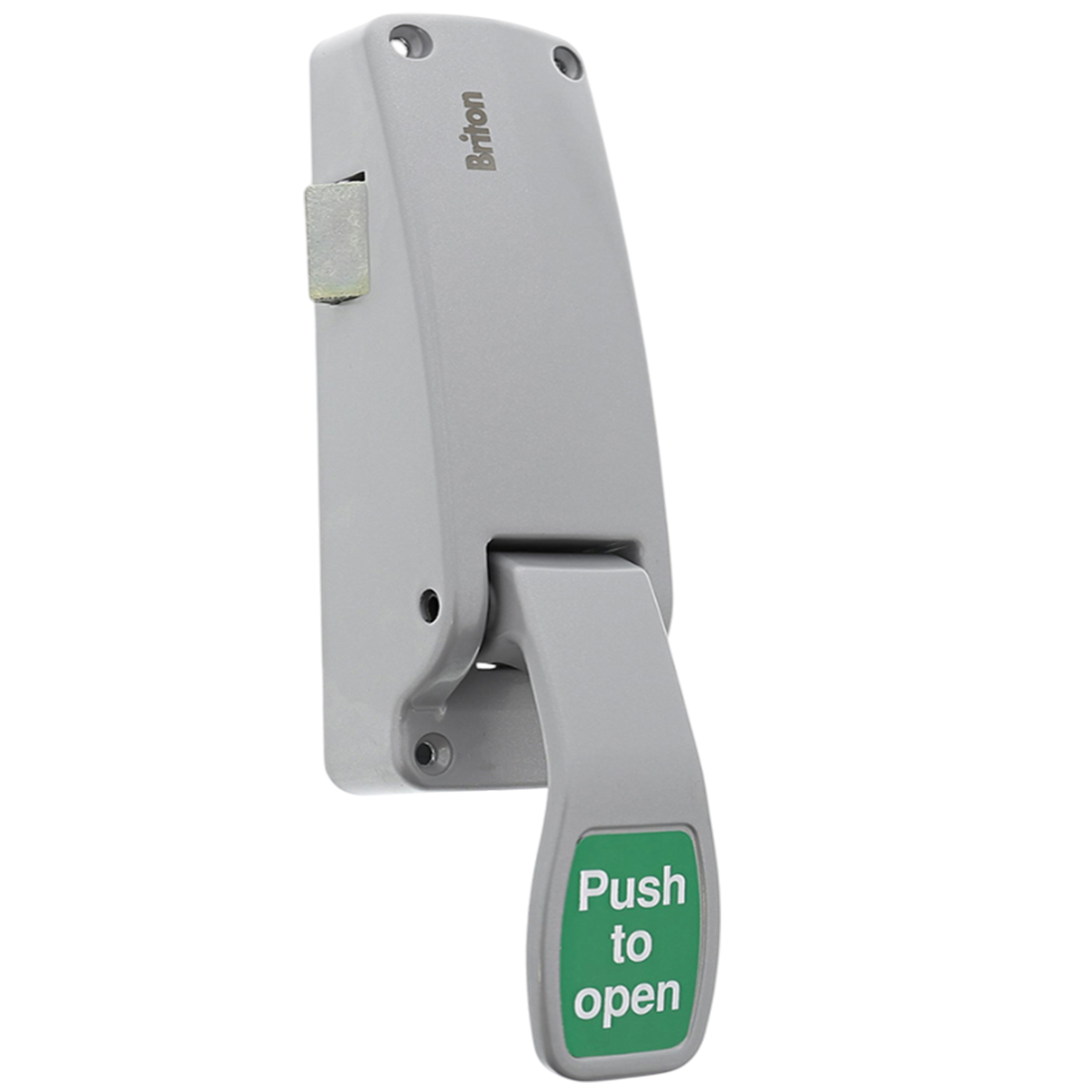

Allegion - Briton 1438
Material: Stainless steel 304 and Certifire Approved (CF5506)
Door type: Timber and Metal door
Fire tested to EN 1634-1 to achieve a 2-hour fire rating on timber doors (1 hour when used with Outside Access Devices) and 2 hours on metal doors

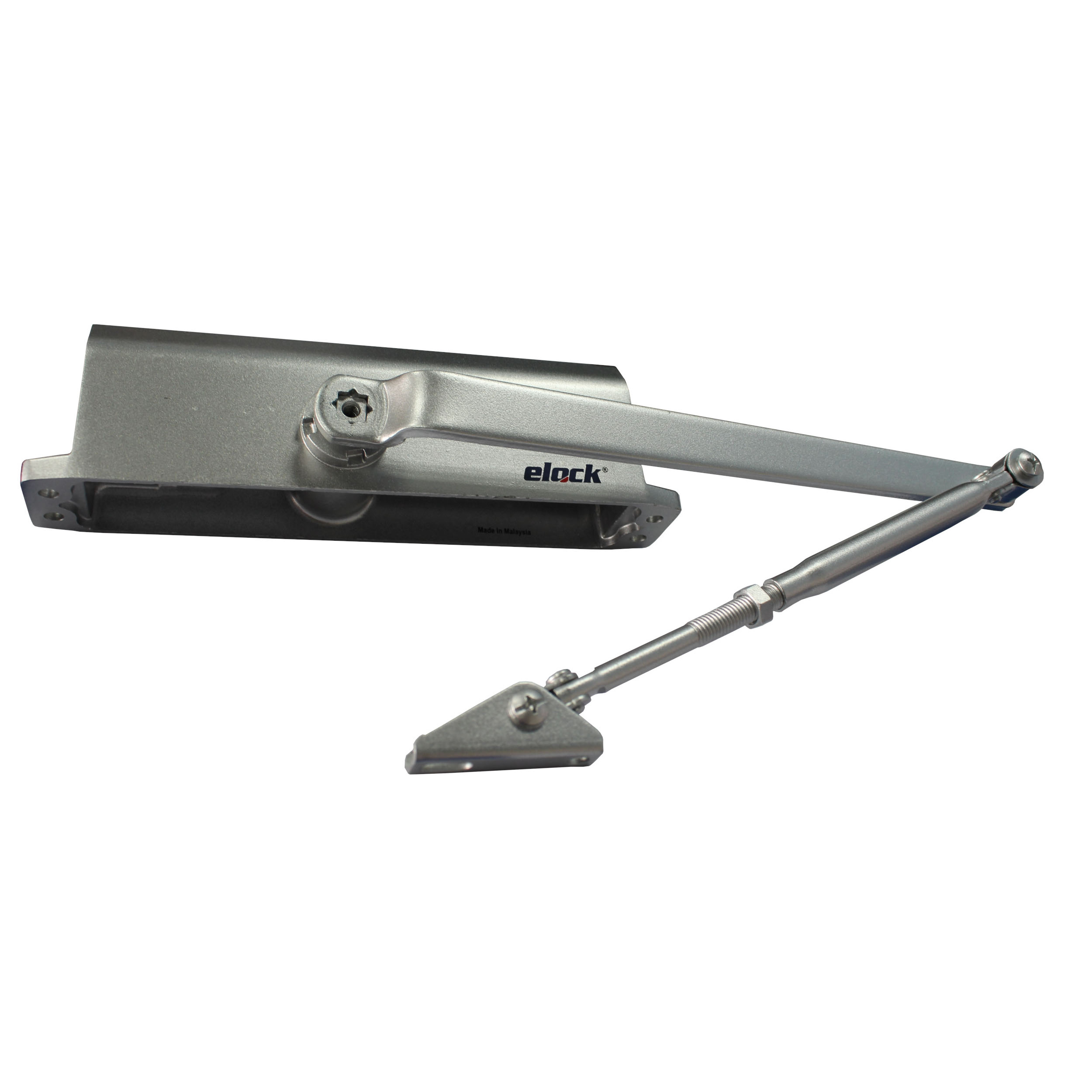

EL-KC1005 BW
Door Closer made of Die Casting Aluminium Alloy
Latching and Closing speed adjusted independently
Door Weight: 176 – 265 Lbs

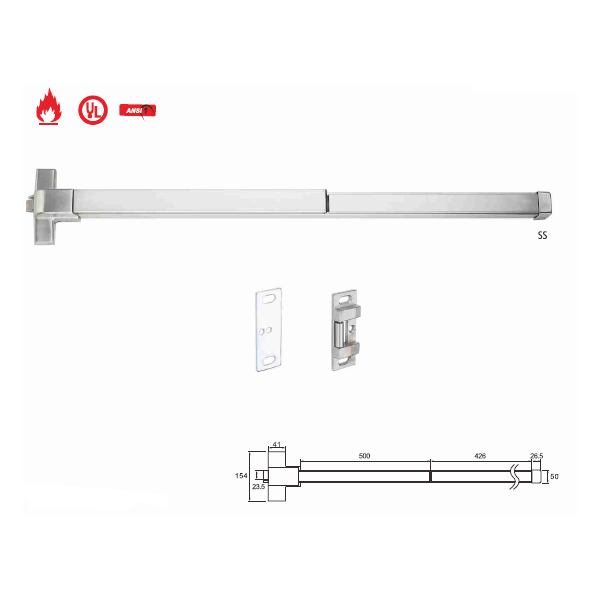

EL-F3200-A
Fire Rated Panic Bar (Rim Type, Single Leaf Door)
Material: Heavy Gauge Steel or 304 Stainless Steel
UL listed | Color: Alum as a standard
EL-MPB
Micro Switch Push Bar with LED and Sound
Output Status: Trigger (0.5-60 secretary.)/ Toggle (Use of a key to control)
Power Input: DC 12V/ DC 24V | Contact life ≥100,000 times
EL-CMP301DE01
Fail safe Delay Agress Exit Device
Material: 304 or Stainless Steel Painted
Delay egress, optional 0, 5, 10, 15 seconds | key to open door

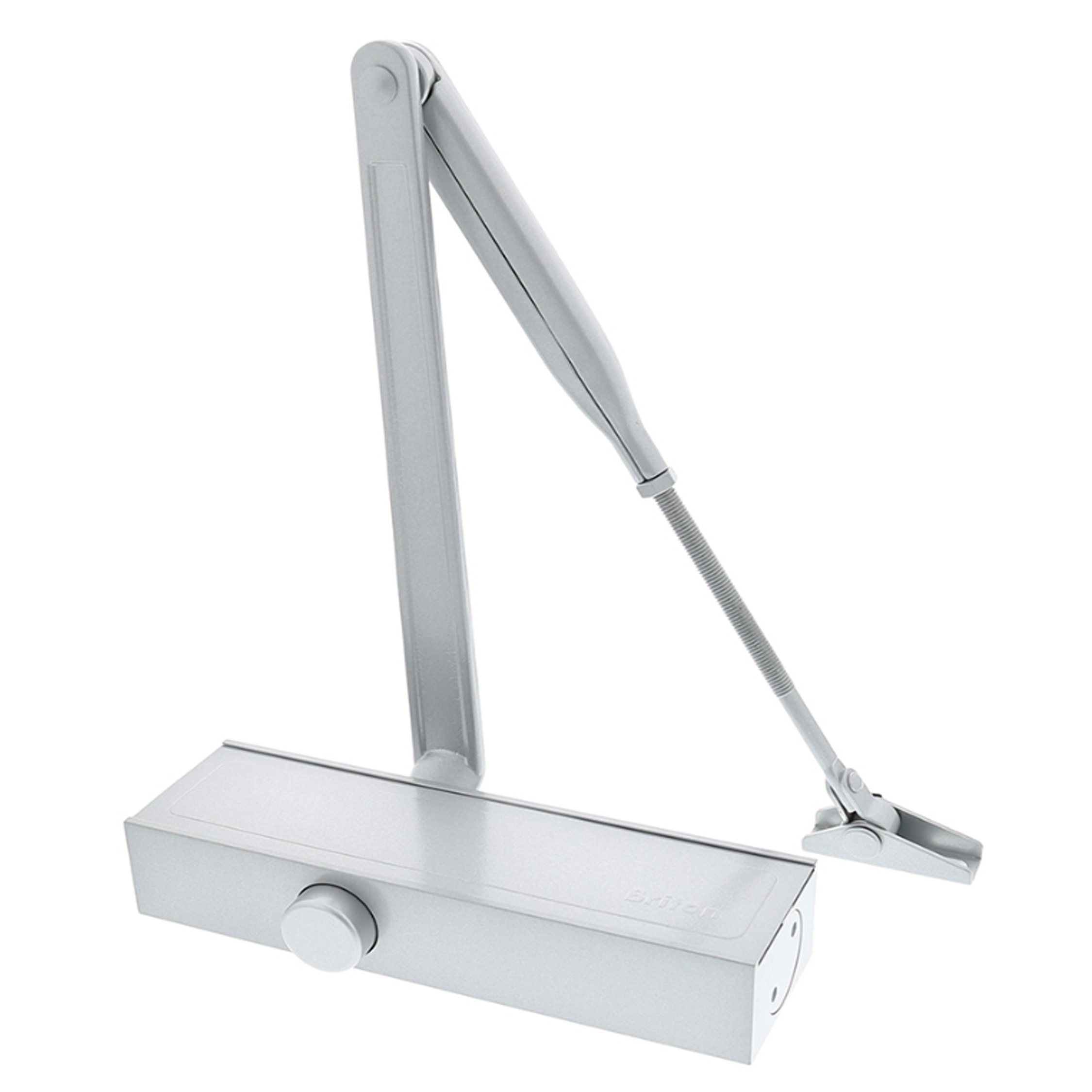

Allegion - Briton 1110
Template adjustable closing power size EN 2-4 door & transom mount, EN 3 parallel arm mount applications
Suitable for doors up to 1100mm wide and 80kg
Adjustable closing speed and latch action, Suitable for fire and non-fire door.

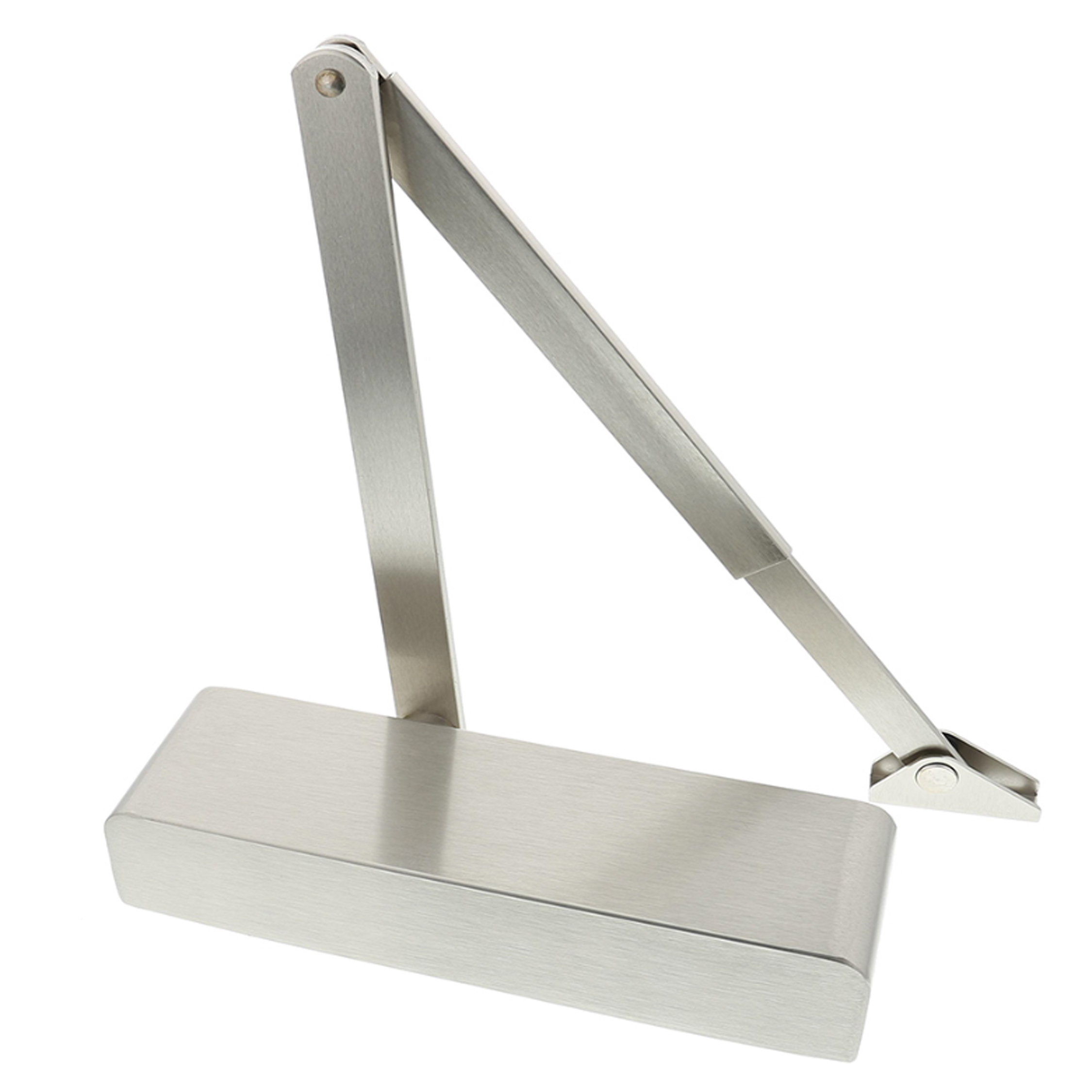

Allegion - Briton 1120B
Spring adjustable power size EN 2-4 door & transom, EN 3-4 parallel arm mount applications
Suitable for doors up to 1100mm wide and 80kg
Certified built-in adjustable backcheck to prevent damage to the door and frame in all applications

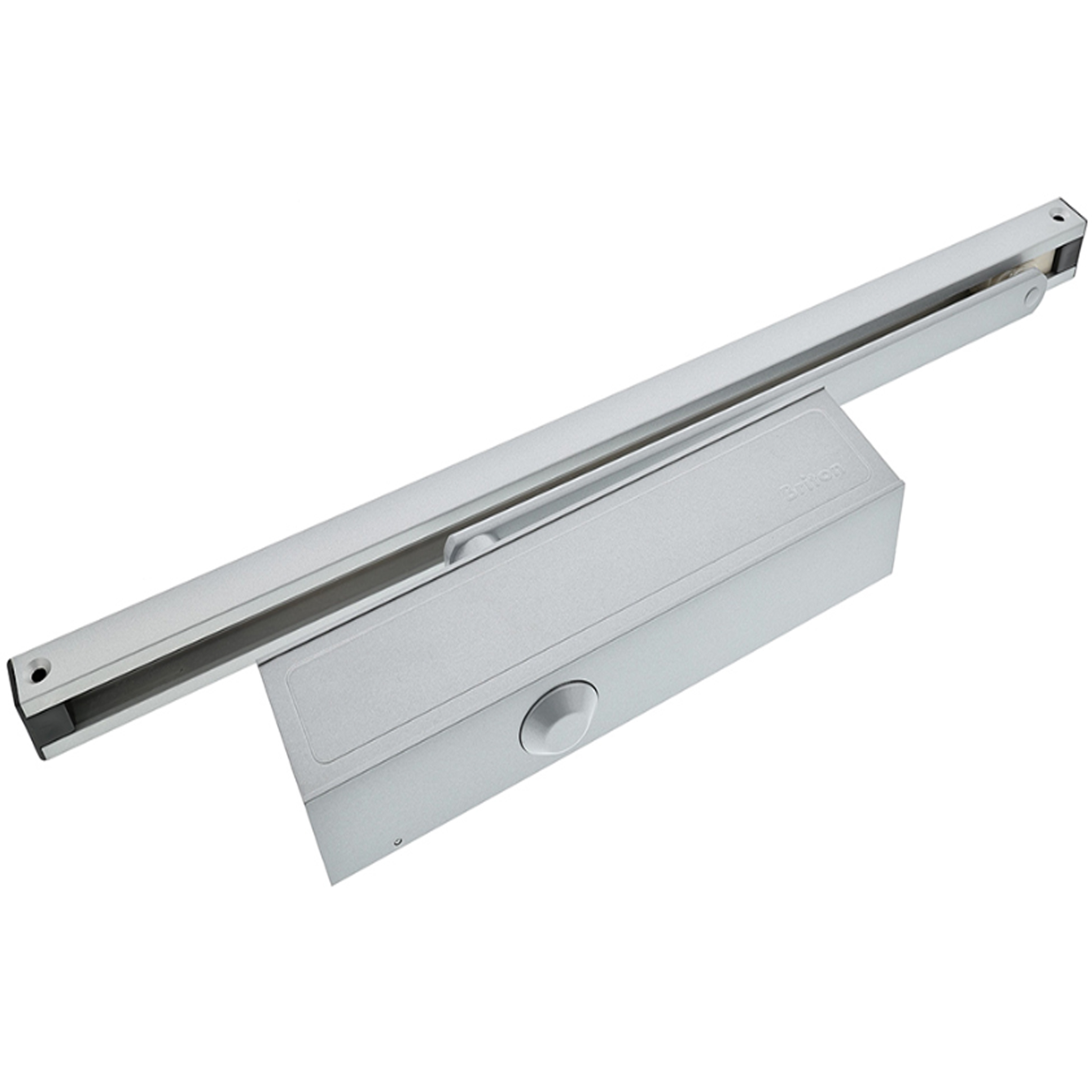

Allegion - Briton 1130B.T
Spring adjustable power EN 2-4 door and transom mount and parallel arm
built-in adjustable backcheck to prevent damage to the door
Certified, UKCA & CE marked for door mount pull, transom mount pull and parallel arm push side

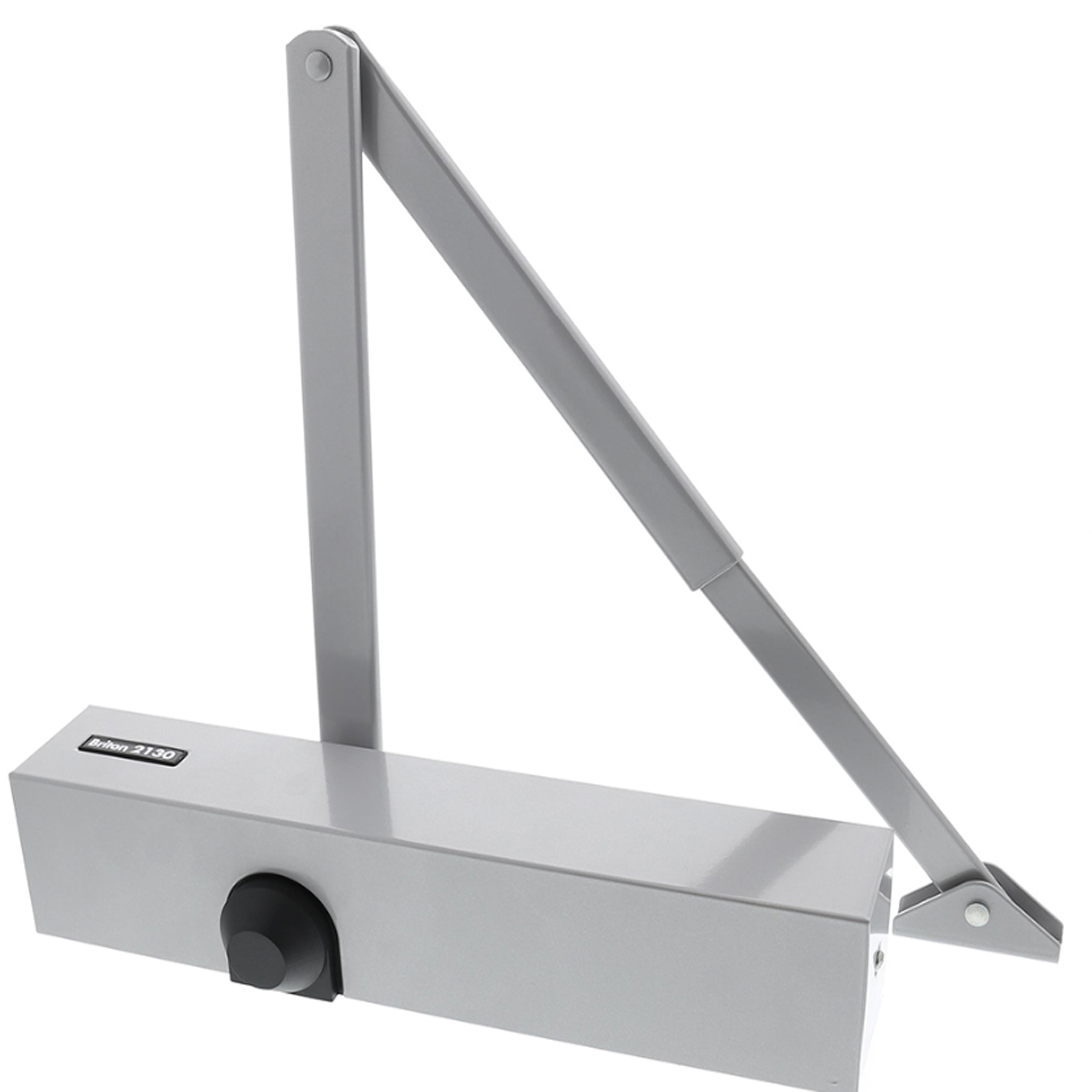

Allegion - Briton 2130B
Spring adjustable power EN 2-6 door & transom mount, EN 1-5 parallel arm
Suitable for doors up to 1400mm wide and 120kg
Certified built-in adjustable backcheck to prevent damage to the door and frame, Adjustable closing speed & latch action

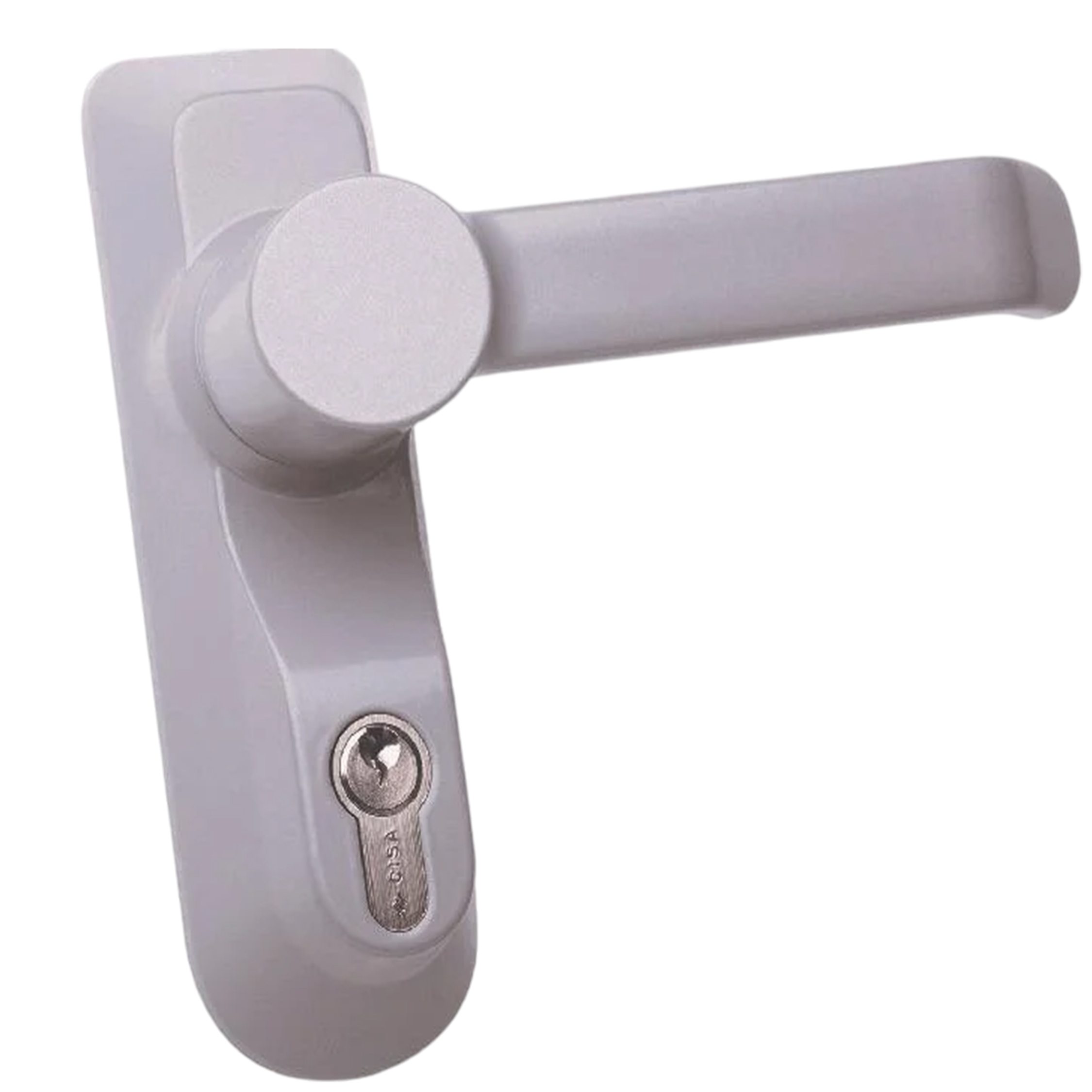

Allegion - Briton 1413.LE
Suitable for single and double doors (when fitted to the first opening leaf)
Anti-vandal design allows the lever to rotate when the unit is locked
Outside access devices designed to be used with panic and emergency exit devices. Tested up to 200,000 cycles

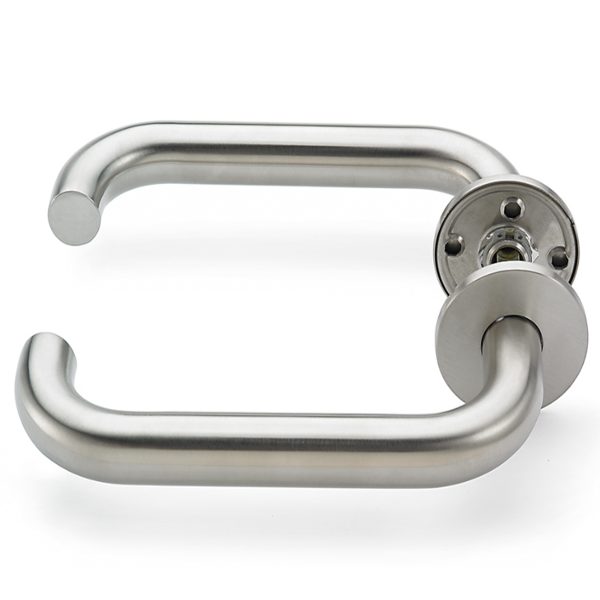

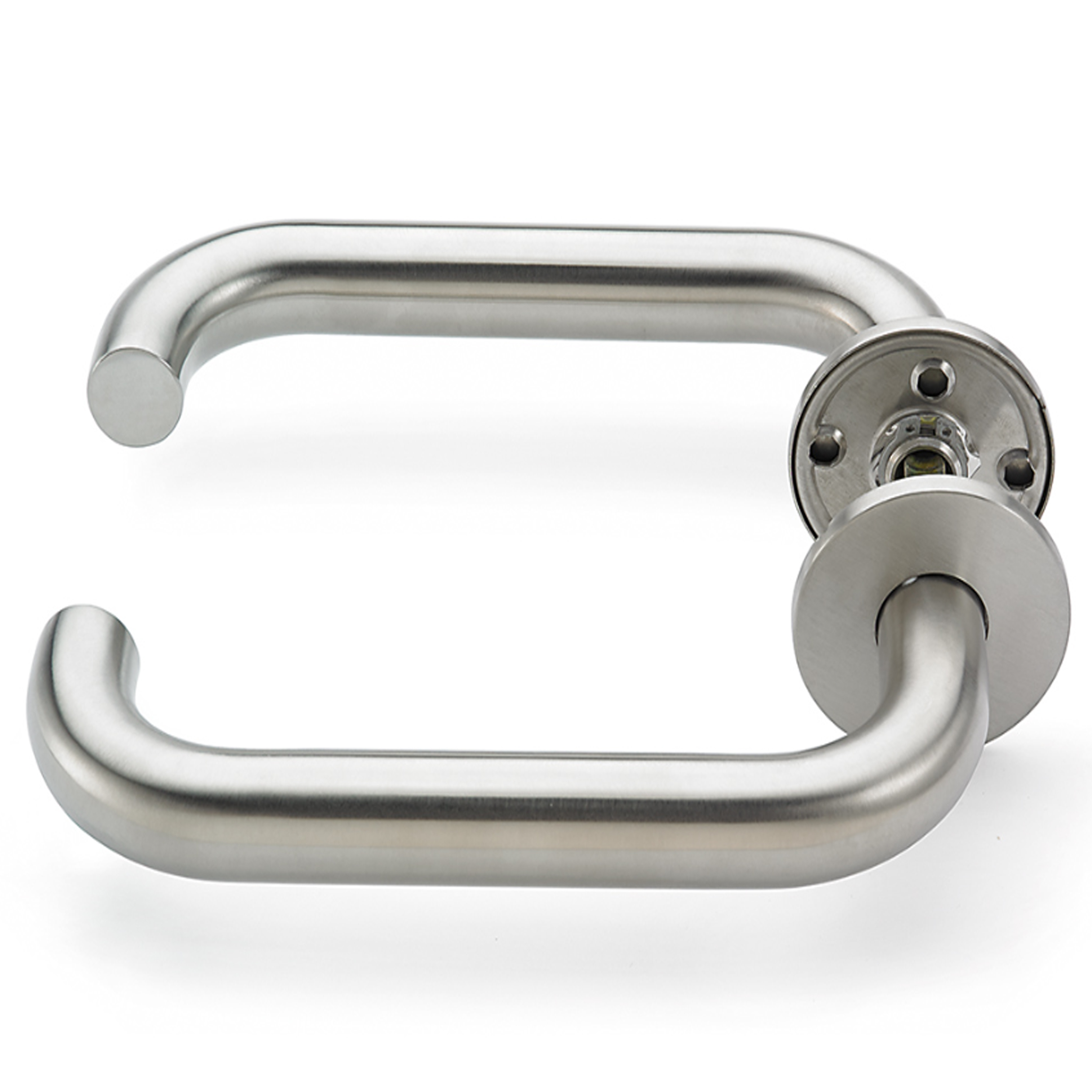

Allegion - Briton 4701
Precision manufactured in Stainless Steel Grade 304
Unique ‘ClickFit’ system provides a snap fit for pressed rose and escutcheon covers
Spindle is fixed to the inside and the outside lever handle with “break thru” grub screws for greater security and durability

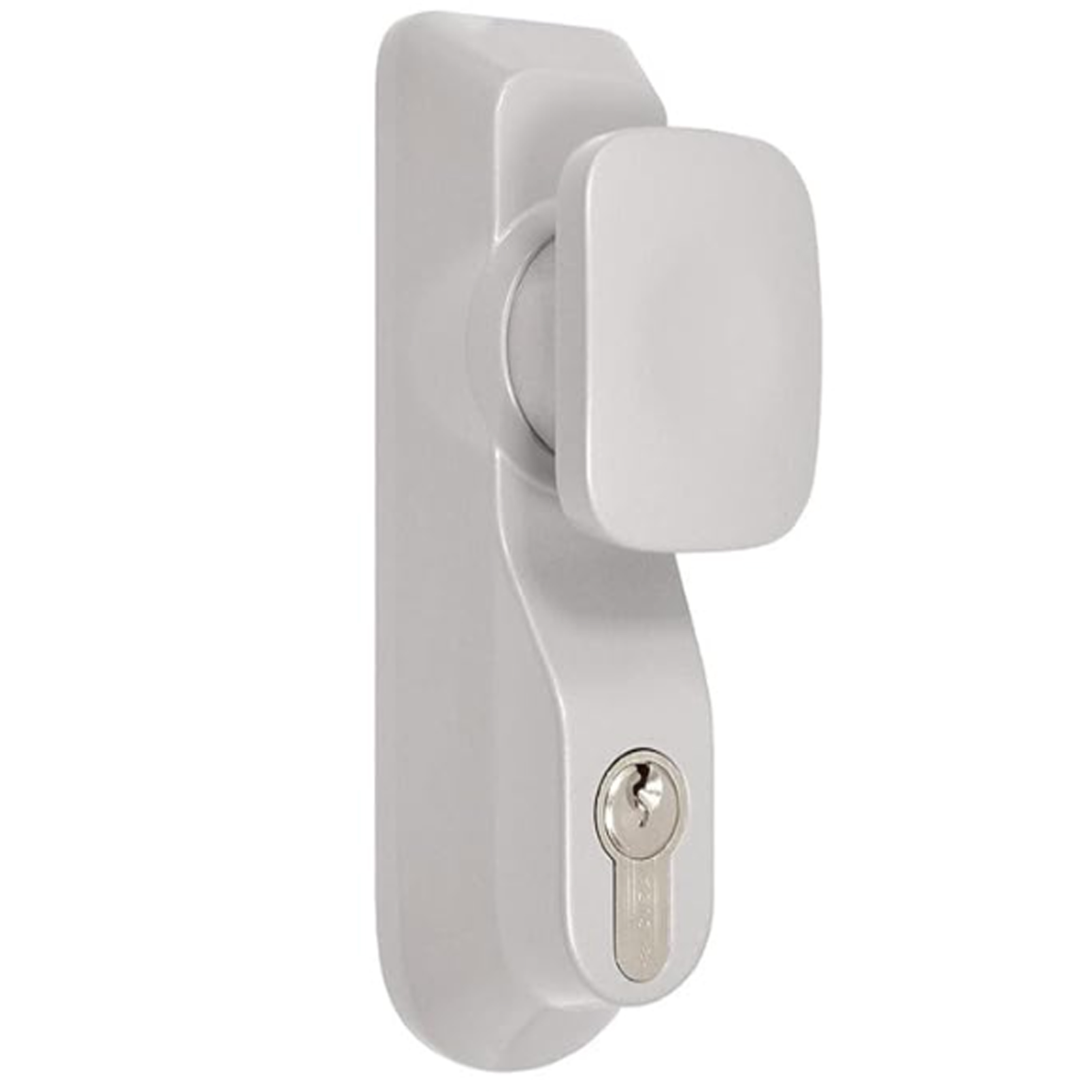

Allegion - Briton 1413.KE
Suitable for single and double doors (when fitted to the first opening leaf)
Anti-vandal design allows the lever to rotate when the unit is locked
Outside access devices designed to be used with panic and emergency exit devices. Tested up to 200,000 cycles.

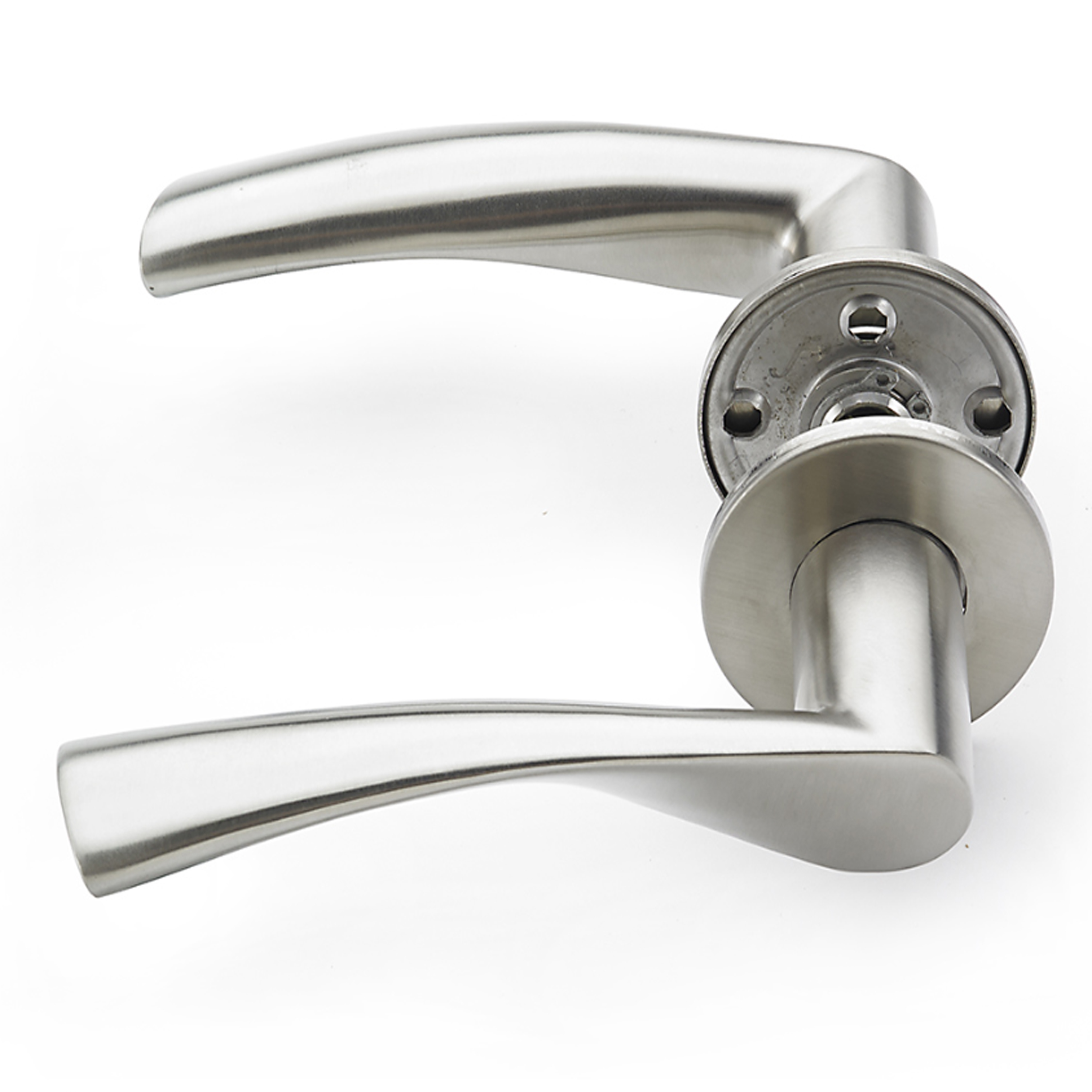

Allegion - Briton 4706
Precision manufactured in Stainless Steel Grade 304
Unique ‘ClickFit’ system provides a snap fit for pressed rose and escutcheon covers
Spindle is fixed to the inside and the outside lever handle with “break thru” grub screws for greater security and durability
