FELIX DISABLED TOILET ALARM SYSTEM
🚨 Main Purpose
The FELIX DISABLED TOILET ALARM SYSTEM allows a person with a disability to call for help in an emergency while using an accessible toilet.
This emergency call system is installed inside accessible toilets (e.g., for wheelchair users or people with health conditions).
If someone falls or becomes unwell, they can pull a cord to raise an alarm. The system then alerts staff or others nearby, so help can come quickly.
FTA-02
FTA-02M The “brain” of the kit. Supplies power, monitors devices, handles the wiring, standby battery
FTA-02R To cancel the alarm once help has arrived
FTA-02B Visual + audible indicator located outside the bathroom (or WC), so staff or passersby know where help is needed
FTA-02C Use to signal for help by pulling a cord

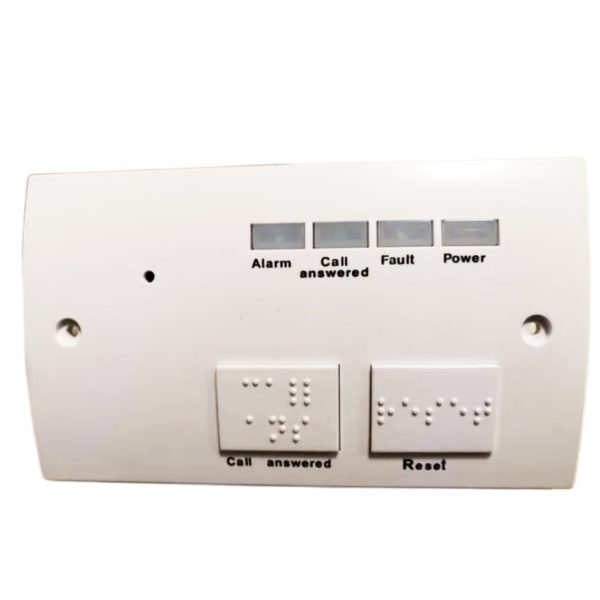

FTA-02M
Power Input: 230V AC mains supply (UK standard); internally converts to 12V DC.
Output Current: Supplies ~100–150 mA total for connected devices.
Battery Backup: Optional 9V lead-acid or lithium battery can be used for power back up to the full Kit.
Standards: Complys with electrical safety and fire regulations.

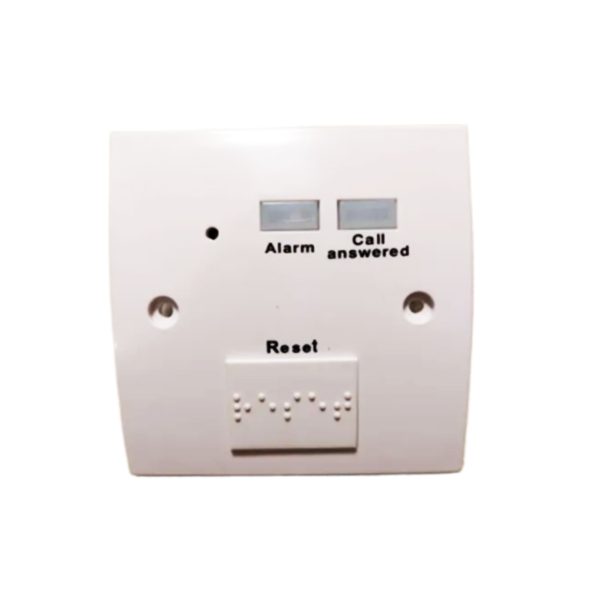

FTA-02R
Function: Push button; resets alarm when pressed.
Extras: It includes a reassurance Green LED (so user knows alarm was received).
Mounting: Wall-mounted, within reach from a wheelchair (e.g. 900–1100mm high)
Power: Low voltage; connects to controller.

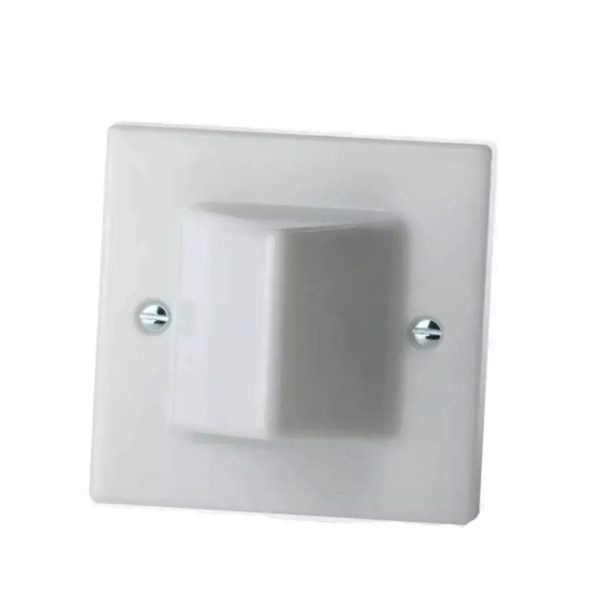

FTA-02B
Visual Alert: Flashing red LED or xenon beacon.
Sound Output: Typically 70–85 dB at 1m.
Power: 12V DC from the main controller.
IP Rating: Often IP41 (protected against objects >1mm and dripping water).

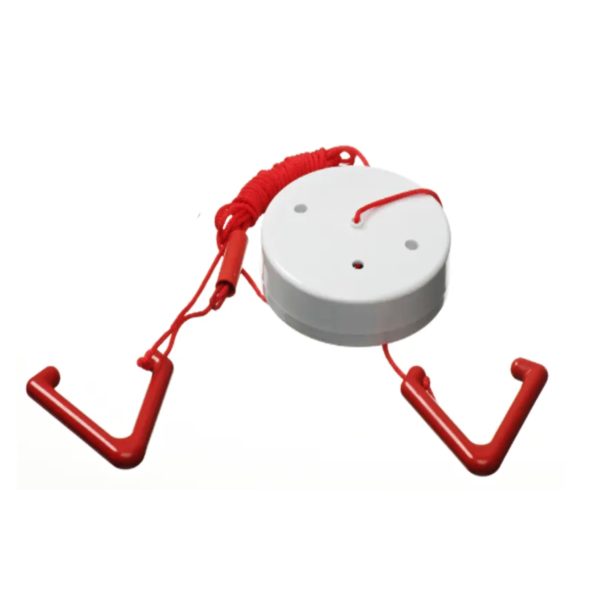

FTA-02C
Function: Normally open contact; when pulled, circuit closes to activate alarm.
Height: 2 red handles, one ~100mm from floor, another ~800mm from floor.
Mounting: Ceiling-mounted; 2-core or 4-core cable to controller.
-
Overview:
A fully compliant disabled toilet alarm system for Dubai, designed in line with the Dubai Building Code & Universal Design Code, and international standards such as BS 8300. Suitable for public, commercial, healthcare, and hospitality installations.Key Features:
• Mains powered (230V AC 50Hz), with 24 hours stand‑by battery backup and 15 minutes full alarm operation in event of power loss.
• Supports up to 4 zones, with LED indication at control panel and alarm feedback at point of call. Optional expansion modules available.
• Dual pull cords (ceiling and floor level), reset button inside cubicle (≤ 1.2 m height), all with tactile labelling & braille.
• Audible buzzer ≥ 80 dB and visual flash over door (flash rate compliant with local universal design requirements), reassurance LED at pull cord.
• Reset only at point of call; silence available at control panel; non‑attendance reminder every ~40 seconds.
• Robust IP‑rated components, corrosion resistant materials (e.g. stainless steel or durable plastic), designed for humid environments.
• Volt‑free relay output for integration with building management systems or central monitoring.
• Full diagnostics & fault‑detection; low standby current; local after‑sales support & maintenance.Typical Applications: Public restrooms, hospitals, shopping malls, airports, hotels, leisure centres, schools, government buildings, etc.
Compliance & Certifications: Meets requirements of Dubai Building Code Part C – Accessibility; Universal Design Code; BS 8300 / Part M; CE / UKCA as applicable.
